Partial Grid — ReoGrid Docs

A PartialGrid represents a detached rectangular block of cells — including data, styles, and borders — that can be extracted from or applied to a worksheet. It is the underlying mechanism for clipboard operations, the SetPartialGridAction, and pattern-repeating fills.

Namespace

using unvell.ReoGrid;

Creating a PartialGrid

Constructors

Constructor	Description
`PartialGrid()`	Create an empty partial grid
`PartialGrid(int rows, int cols)`	Create an empty partial grid with the specified capacity
`PartialGrid(object[,] data)`	Create a partial grid filled with data from a 2D array

// From a 2D array
var grid = new PartialGrid(new object[,] {
    { "Name", "Price", "Qty" },
    { "Apple", 1.20, 50 },
    { "Banana", 0.80, 30 },
});

Properties

Property	Type	Description
`Rows`	`int`	Number of rows in the partial grid
`Columns`	`int`	Number of columns in the partial grid

Extracting from a Worksheet

Use GetPartialGrid to copy a block of cells from the worksheet. The returned PartialGrid contains data, styles, and borders.

GetPartialGrid Overloads

Signature	Description
`GetPartialGrid(string addressOrName)`	Get by address or named range
`GetPartialGrid(int row, int col, int rows, int cols)`	Get by position and size
`GetPartialGrid(RangePosition range)`	Get by range position
`GetPartialGrid(int[] columns, int[] rows)`	Get non-contiguous columns and rows

// Copy a block from A1:C3
PartialGrid block = sheet.GetPartialGrid("A1:C3");

// Copy by position
PartialGrid block = sheet.GetPartialGrid(0, 0, 3, 3);

// Copy specific columns and rows (non-contiguous)
PartialGrid block = sheet.GetPartialGrid(
    new int[] { 0, 2, 4 },   // columns A, C, E
    new int[] { 0, 1, 2 });   // rows 1, 2, 3

Applying to a Worksheet

Use SetPartialGrid to paste a partial grid into the worksheet at a target position. This overwrites the target range with the partial grid’s data, styles, and borders.

SetPartialGrid Overloads

Signature	Return	Description
`SetPartialGrid(string addressOrName, PartialGrid data)`	`RangePosition`	Paste at the address or named range
`SetPartialGrid(RangePosition toRange, PartialGrid data)`	`RangePosition`	Paste at the range position

// Copy from one location to another
var block = sheet.GetPartialGrid("A1:C3");
sheet.SetPartialGrid("E1", block);

The returned RangePosition is the actual range that was filled.

Repeating a Pattern

Use SetPartialGridRepeatly to tile a partial grid across a larger range. The partial grid is repeated to fill the target range.

SetPartialGridRepeatly Overloads

Signature	Return	Description
`SetPartialGridRepeatly(string addressOrName, PartialGrid grid, PartialGridCopyFlag flags)`	`RangePosition`	Repeat at address
`SetPartialGridRepeatly(RangePosition range, PartialGrid grid, PartialGridCopyFlag flags)`	`RangePosition`	Repeat at range

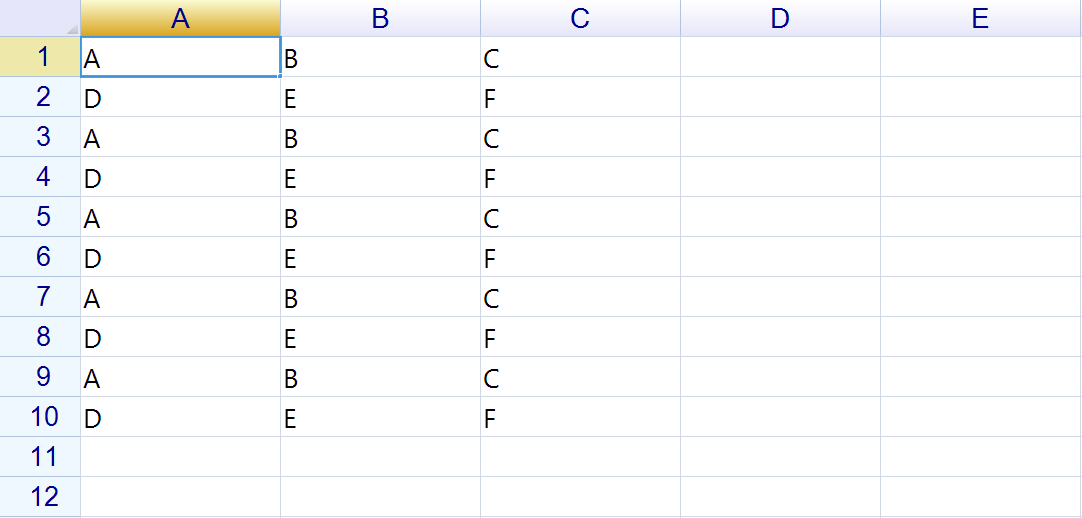

// Create a 2-row pattern
var pattern = new PartialGrid(new object[,] {
    { "A", "B", "C" },
    { "D", "E", "F" },
});

// Tile the pattern across a 10-row range
sheet.SetPartialGridRepeatly("A1:C10", pattern);

PartialGridCopyFlag

The PartialGridCopyFlag enum controls which elements of the partial grid are copied.

Individual Flags

Value	Hex	Description
`CellData`	`0x1`	Cell data values
`CellFormula`	`0x2`	Cell formulas
`CellFormat`	`0x4`	Data format settings
`CellStyle`	`0x8`	Cell styles
`HBorder`	`0x10`	Horizontal borders
`VBorder`	`0x20`	Vertical borders

Composite Flags

Value	Combines	Description
`CellProperties`	`CellData \| CellFormula \| CellFormat \| CellStyle`	All cell properties
`Borders`	`HBorder \| VBorder`	All borders
`All`	`CellProperties \| Borders`	Everything (default)

// Copy only data and formulas (no styles or borders)
sheet.SetPartialGridRepeatly("A1:C10", pattern,
    PartialGridCopyFlag.CellData | PartialGridCopyFlag.CellFormula);

Using with Actions

The SetPartialGridAction provides undo/redo support for pasting partial grids:

using unvell.ReoGrid.Actions;

var block = sheet.GetPartialGrid("A1:C3");
sheet.DoAction(new SetPartialGridAction(
    new RangePosition("E1:G3"), block, PartialGridCopyFlag.All));

// Undo the paste
grid.Undo();

Comparing Partial Grids

bool isEqual = grid1.Equals(grid2, PartialGridCopyFlag.All);
bool dataOnly = grid1.Equals(grid2, PartialGridCopyFlag.CellData);

Examples

Copy and Paste a Block

// Copy header row with styles
var header = sheet.GetPartialGrid("A1:F1");

// Paste into another worksheet
var sheet2 = grid.Worksheets[1];
sheet2.SetPartialGrid("A1", header);

Create a Repeating Template

// Define a styled template row
var template = sheet.GetPartialGrid("A1:D2");

// Apply it across 20 rows
sheet.SetPartialGridRepeatly("A3:D22", template);

Selective Copy

// Copy only styles (no data)
sheet.SetPartialGridRepeatly("A1:D10", template,
    PartialGridCopyFlag.CellStyle | PartialGridCopyFlag.Borders);
