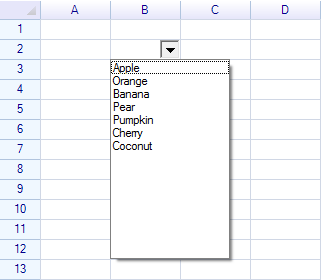

Create a drop-down list cell

To create a drop-down list cell, use the DropDownListCell class, which is a built-in cell body that represents a drop-down list in a specified cell.

var sheet = grid.CurrentWorksheet;

var dropdown = new DropdownListCell(
  "Apple", "Orange", "Banana", "Pear",
  "Pumpkin", "Cherry", "Coconut"
);

sheet["B2"] = dropdown;

Result:

Change list items

Use the Items property to add, remove, and clear the list items:

dropdown.Items.AddRange("Apple", "Orange", "Banana", "Pear", "Pumpkin", "Cherry", "Coconut");

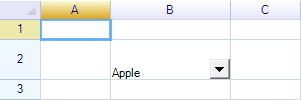

Set default data

To set a default value or change the cell data, set the cell data directly:

sheet["B2"] = "Apple";

Result:

Get selected data

Use either of the following methods to receive an event when the user selects an item:

• The SelectedItemChanged event on the DropDownListCell instance
• The CellDataChanged event on the Worksheet instance

To use the SelectedItemChanged event, use the following code:

dropdown.SelectedItemChanged += (s,e) => { ... };

Since the drop-down list cell updates the cell data after an item is selected, it is also possible to use the CellDataChanged event to get the selected data:

sheet.CellDataChanged += (s, e) => {
  if (e.Cell.Position == new CellPosition("E5")) {
    MessageBox.Show("Drop-down list item selected: " + e.Cell.Data);
  }
};

Change drop-down cell size

There are several ways to change the drop-down cell width. Depending on the worksheet layout, use one of the following methods:

1. Change the size of the header (the row or column that contains the cell)
2. Merge the drop-down cell with neighboring cells
3. Apply a Padding style to the cell

Change header size

Setting the header size using SetColumnsWidth and SetRowsHeight will also change the cell’s size:

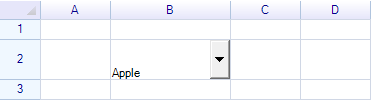

sheet.ColumnHeaders["B"].Width = 120;

Result:

Change row height:

sheet.RowHeaders[1].Height = 40;

Result:

Merge cells

Merge two neighboring cells to create a larger cell:

sheet.MergeRange("B2:C2");

Result:

Set padding style

Set a padding style for the cell to shrink the drop-down control size within the cell:

// Set right padding to 10px
sheet.Cells["B2"].Style.Padding = new Padding(0, 0, 10, 0);

Change drop-down button size

The following two properties are related to changing the button size:

• DropdownButtonAutoHeight
• DropdownButtonSize

The DropdownButtonAutoHeight property indicates whether to fit the drop-down button to the cell automatically; it is true by default. The DropdownButtonSize property is used to set the drop-down button size directly. When DropdownButtonAutoHeight is true, the height portion of DropdownButtonSize has no effect.

Auto-height is true:

Auto-height is false:

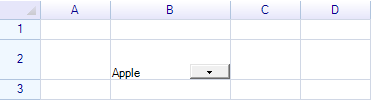

When DropdownButtonAutoHeight is false, change the DropdownButtonSize property to adjust the button size:

dropdown.DropdownButtonAutoHeight = false;
dropdown.DropdownButtonSize = new System.Drawing.Size(40, 15);

Set cell border

A drop-down cell does not show borders around itself by default. Set cell border styles to display borders:

sheet.Ranges["B2"].BorderOutside = BorderStyle.GraySolid;

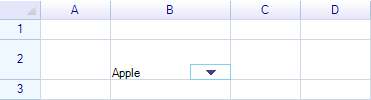

Draw a custom drop-down button

Override the OnPaintDropdownButton method to draw a custom drop-down button:

class MyDropdownListCell : DropdownListCell
{
  public MyDropdownListCell(params string[] items) : base(items) { }

  protected override void OnPaintDropdownButton(CellDrawingContext dc, Graphics.Rectangle buttonRect)
  {
    dc.Graphics.DrawAndFillRectangle(buttonRect, SolidColor.DeepSkyBlue, new SolidColor("#BEE7F1"));

    var centerPoint = new Graphics.Point(buttonRect.Left + buttonRect.Width / 2,
      buttonRect.Top + buttonRect.Height / 2);

    GraphicsToolkit.FillTriangle(dc.Graphics.PlatformGraphics, 9,
      centerPoint, GraphicsToolkit.TriangleDirection.Down,
      this.IsDropdown ? Pens.SkyBlue : Pens.DarkSlateBlue);
  }
}

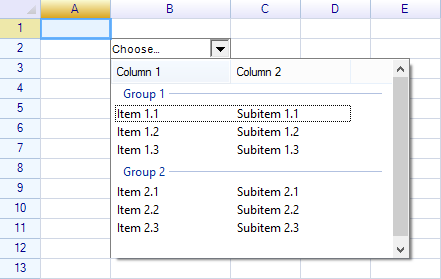

Make a custom drop-down cell

It is possible to create a custom drop-down cell that places any Windows Forms control inside the drop-down panel.

See how to create a custom drop-down cell.
